ROTOR WINDING TESTING MADE EASY

We specialise in the design, manufacture and supply of Test Equipment for detecting and locating faults in the field windings of large cylindrical turbo-alternator rotors.

Our main products are the **TDR200 Rotor RSO Relectometer**,the RFM 200 Rotor Magnetic Flux Probe Monitor and the RWG100 Flux probe calibrator. The RSO test is carried out on generators which are isolated and off-load, while the Flux Probe test is performed with the generator running and on-load. The RWG100 is a calibrator and precision waveform generator for use with flux probe analysis equipment, including the Rowtest RFM100

** IMPORTANT NOTICE** Because of component supply problems, we are currently unable to quote for or supply the TDR200 Rotor RSO Relectometer. We will update this web site if or when the parts become available.



The TDR200 Rotor Reflectometer

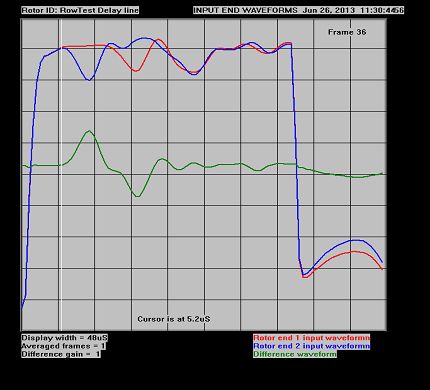

The TDR200 Rotor Reflectometer, uses the RSO (Recurrent Surge Oscilloscope) off-line test method to detect faults in power turbogenerator alternator rotor windings. It replaces our original TDR100 version, which displayed the test waveforms on an analogue or digital oscilloscope and was previously manufactured by our associate company, Convex Design Ltd.(CDL). For further details, please click here.

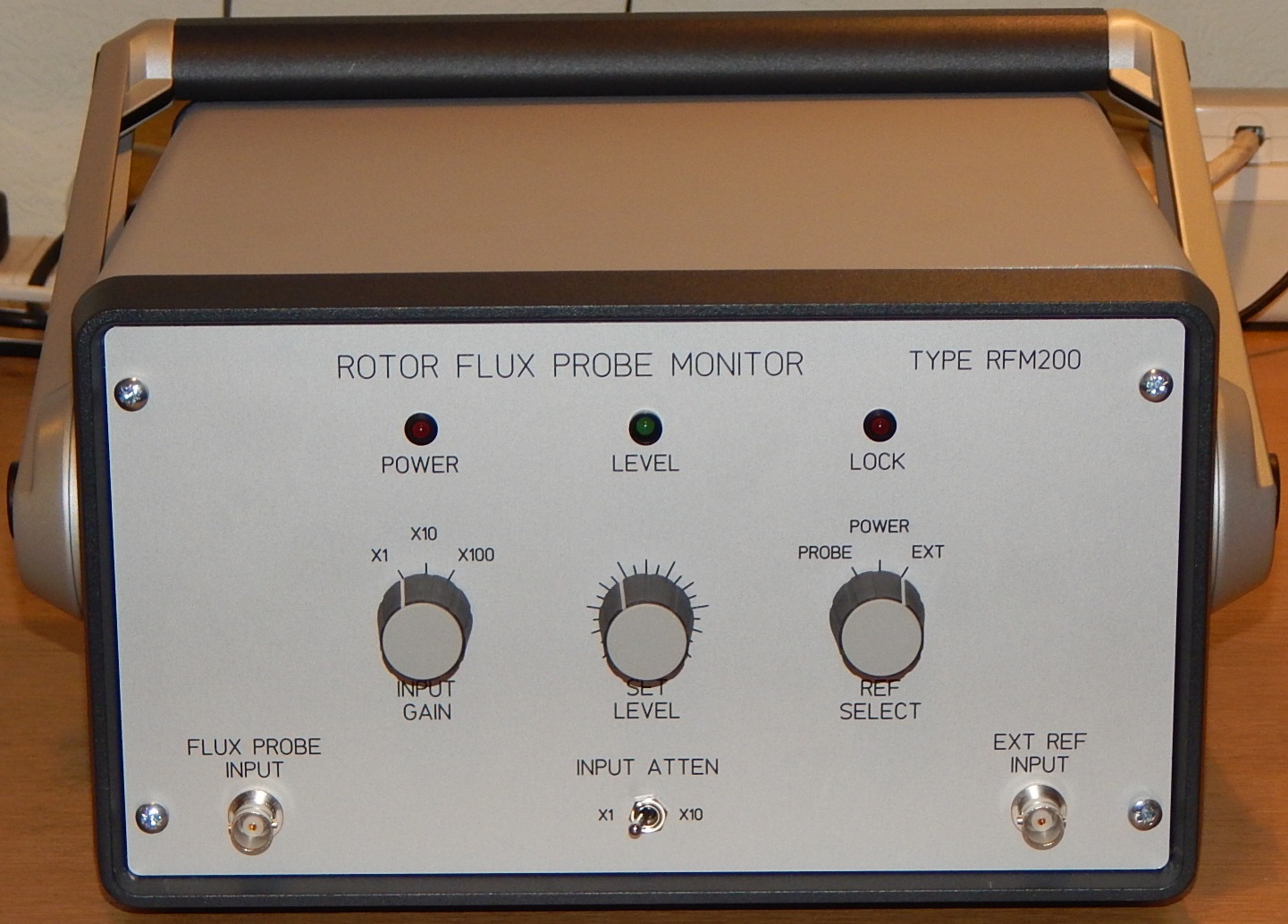

The RFM200 Rotor Flux Probe Monitor

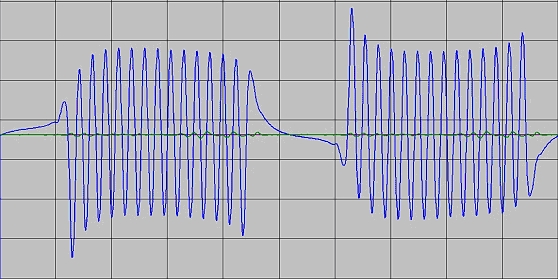

The RFM200 Rotor Flux Probe Monitor detects winding faults by processing the output signal from a magnetic flux probe (search coil) located in the air gap between a rotor and its stator. It is an on-line test method which is used with the generator in its normal operating mode. For further details, please click here.




The RWG Flux Probe Calbrator and waveform generator

The RWG100 is a calibrator and precision waveform generator for use with Rotor Flux Probe analysis equipment, including the Rowtest RFM100. For further details, please click here.


***** We have compiled a comprehensive Guide to testing Cylindrical Rotor Windings and a copy can be viewed here. *****
